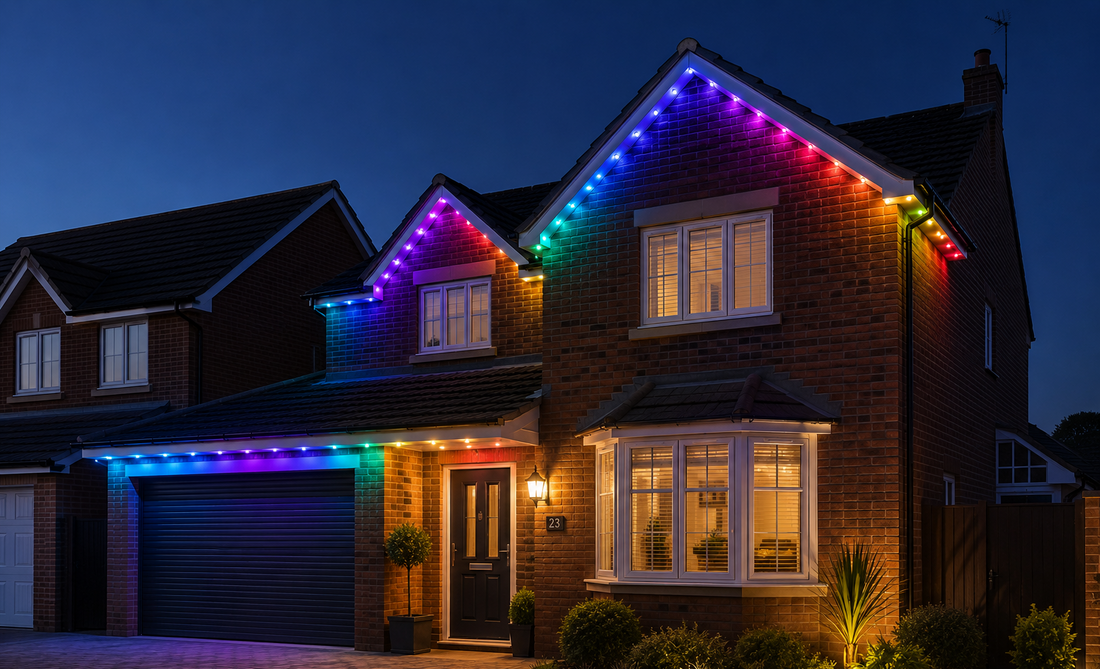

Permanent Outdoor Lighting with WLED: Complete DIY Guide (2026)
Share
Permanent outdoor lighting has become increasingly popular for homes, patios, and garden structures. Instead of putting up Christmas lights every year, many homeowners are choosing permanent LED installations that provide decorative lighting all year round.
Commercial systems from brands such as Govee, Eufy, and Lumary offer convenience and simple setup. However, a DIY WLED setup gives you more flexibility, local control, and compatibility with platforms such as Home Assistant.
The good news? You can build a reliable permanent outdoor lighting system yourself with readily available hardware and a free, open-source controller platform.
What Are Permanent Outdoor Lights?
Permanent outdoor lights are LED strips or pixel lights installed under rooflines, gutters, soffits, windows, pergolas, or garden structures. They stay in place year-round and can be used for:
- Everyday accent lighting
- Christmas decorations
- Halloween themes
- Garden and patio lighting
- Special occasions and parties
Unlike traditional seasonal lights, permanent installations are designed to withstand outdoor conditions and can be controlled from your phone or smart home system.
Most commercial systems provide a managed ecosystem with their own apps and hardware. A DIY WLED system offers a more flexible approach, with local control and integration with the rest of your smart home.
Why Use WLED?
WLED is free, open-source firmware that runs on ESP32 controllers and provides:
- Local control without requiring cloud services
- Hundreds of built-in effects
- Scheduling and presets
- Integration with Home Assistant, Alexa, MQTT, and HTTP APIs
- Support for multiple outputs and zones
- Compatibility with a wide range of addressable LEDs
Because WLED works locally, your lighting can continue functioning even if your internet connection is unavailable.
What You'll Need
The Controller
The controller is the brain of your setup.
For outdoor installations, there are two common approaches.
Option 1: Waterproof Controller (Simpler Installation)
Designed for sheltered outdoor locations, an IP65-rated controller such as the GL-C-012WL Waterproof WLED Controller provides:
- WLED pre-installed
- 5–24V operation
- Built-in microphone for sound-reactive effects
- Up to 10A output
- Compact design
Suitable for:
- Single rooflines
- Pergolas
- Garden structures
- Smaller installations
Option 2: Multi-Output Controller (More Flexibility)
For larger installations, multi-output controllers provide greater flexibility and allow multiple independent lighting zones.
A 2-output WLED controller is suitable for medium-sized projects, while a 4-output WLED controller makes it easy to split larger installations into separate areas.
Important: Unlike waterproof single-zone controllers, most multi-output WLED controllers are designed for installation inside a weatherproof enclosure (typically IP65 or higher) when used outdoors.
Typical zones might include:
- Front roofline
- Garage
- Patio
- Porch
Independent outputs allow different colours, effects, and schedules to run simultaneously.
Related: Not sure which controller fits your project? See our Find Your Perfect WLED Controller.
The LEDs
Permanent outdoor installations typically use addressable LEDs rather than ordinary RGB strips.
12V WS2811 Bullet Pixels
These are among the most popular choices for roofline lighting because they:
- Simplify power distribution
- Work well over long distances
- Are widely available in IP67 and IP68 versions
- Fit dedicated mounting tracks
RGBW Pixels
Many homeowners prefer RGBW LEDs because they provide a more natural white light for everyday accent lighting, not just colourful effects.
Key Considerations
- Pixel spacing: 6–8 inches is common for roofline installations.
- Weather rating: IP67 or IP68 is recommended.
- Voltage: 12V is popular for longer runs because it reduces voltage drop.
The Power Supply
Power requirements are often underestimated.
Choose a power supply that provides:
- Enough current for your total pixel count
- Around 20% spare capacity
- Stable voltage
- Weather protection if mounted outdoors
Long runs often require power injection to maintain consistent brightness and colour.
As a general rule, power injection is commonly needed every 100–150 pixels, although the exact distance depends on:
- Pixel type
- Wire gauge
- Brightness settings
- Colour usage
The Mounting Track
The mounting system helps create a cleaner and more durable installation.
Popular options include:
- Aluminium tracks designed for bullet pixels
- Plastic J-channel
- Soffit mounting systems
- Custom roofline tracks
These help:
- Protect the LEDs
- Hide wiring
- Improve appearance
- Increase durability
For UK homes, aluminium tracks and plastic J-channel are both common solutions.
Step-by-Step Installation
Step 1: Plan Your Layout
Walk around your property and measure each section.
Typical areas include:
- Front roofline
- Garage
- Side elevations
- Rear garden
- Pergolas
- Porch
Take note of:
- Corners
- Peaks
- Long cable runs
- Power supply locations
Good planning makes installation much easier.
Step 2: Decide on Zones
Single Output Controller
Suitable for:
- One roofline
- Pergolas
- Garden features
A waterproof controller such as the GL-C-012WL is often enough for these projects.
WLED segments can still create multiple effects within one output.
Multi-Output Controller
Separate outputs can control independent zones, allowing different presets and schedules around your property.
For larger installations, a 4-output WLED controller makes it easier to manage multiple areas without needing several separate controllers.
Example:
- Output 1 – Front roofline
- Output 2 – Garage
- Output 3 – Patio
- Output 4 – Porch
Step 3: Install the Track
Mount the track beneath the soffit or fascia using suitable fixings.
Aim the LEDs slightly downward so the light reflects against the walls rather than shining directly outward.
This usually creates a cleaner and more subtle appearance.
Step 4: Install the LEDs
Insert the pixels or strips into the track.
For corners and transitions:
- Use short wire jumpers
- Solder joints where possible
- Protect connections with heat shrink tubing
Before making permanent connections, test each section.
Addressable LEDs should only be cut at their designated cut points.
Step 5: Wire the Controller and Power Supply
Waterproof Controller
IP65 controllers are suitable for sheltered outdoor locations such as:
- Under eaves
- Under soffits
- Garden structures
Protect cable connections with:
- Heat shrink tubing
- Waterproof connectors
- Silicone sealant where appropriate
Indoor Controllers
Indoor controllers should be mounted:
- In garages
- Inside utility rooms
- Inside weatherproof enclosures
Always observe polarity when wiring.
For reliable operation:
- Share ground between the power supply, controller, and LEDs.
- Keep data wires reasonably short.
- Add power injection for long runs.
Step 6: Configure WLED
- Power on the controller.
- Connect to the WLED access point.
- Join your home Wi-Fi network.
- Open the WLED interface.
- Select the correct LED type.
- Set the LED count.
- Configure outputs if required.
- Save and test.
Most WS2811 pixels use the WS281x protocol inside WLED.
Step 7: Add Smart Home Automation
Home Assistant includes built-in WLED support.
Popular automations include:
Sunset Lighting
Turn lights on automatically at sunset.
Motion Detection
Illuminate pathways when movement is detected.
Holiday Presets
Switch automatically between:
- Christmas colours
- Halloween themes
- Everyday warm white lighting
DIY WLED vs Commercial Permanent Lighting Systems
Commercial systems can be a good choice if you want the simplest installation and a managed ecosystem.
A WLED system requires more planning but offers greater flexibility and local control.
| Feature | Commercial Systems | WLED |
|---|---|---|
| Local control | Limited | Yes |
| Internet required | Sometimes | No |
| Home Assistant support | Limited | Yes |
| Custom effects | Limited | Extensive |
| Multi-zone support | Depends on model | Yes |
| MQTT support | Rare | Yes |
| Open-source firmware | No | Yes |
Frequently Asked Questions
Are permanent outdoor lights worth it?
Many homeowners enjoy having decorative lighting available throughout the year without repeatedly installing temporary lights.
What LEDs are best for permanent outdoor lighting?
12V WS2811 bullet pixels are among the most popular choices because they are reliable and suitable for long runs.
Does WLED require the internet?
No. WLED works locally and does not require cloud services.
Do permanent outdoor lights need power injection?
Long runs often require power injection to maintain consistent brightness and colour.
How many LEDs can WLED control?
This depends on the controller, effects, and refresh rate. Many ESP32-based controllers comfortably support hundreds of LEDs per output.
What's Next?
Permanent outdoor lighting is one of the most rewarding WLED projects you can build. It adds year-round accent lighting, seasonal flexibility, and smart home integration while giving you complete control over your system.
Whether you're lighting a single roofline or planning multiple zones around your property, starting with the right controller and a well-planned installation will make the project easier and more reliable.
For smaller projects, a waterproof WLED controller may be all you need. Larger installations can benefit from 2-output or 4-output controllers, allowing separate zones and greater flexibility.
