Gledopto Waterproof ESP32 WLED Controller with Mic (GL-C-012WL) - IP65, 5-24V

Gledopto Waterproof ESP32 WLED Controller with Mic (GL-C-012WL) - IP65, 5-24V

Regular price £22.99
Regular price £26.99 Sale price £22.99
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
Technical Specification
Brand GLEDOPTO
Model GL-C-012WL
Colour Black
Controller type Digital / SPI
Processor ESP32
Firmware WLED
Input voltage DC 5-24V
Max. current total 10A
Number of outputs 1
Sound reactive (built-in mic) No
Connectivity Wi-Fi
Smart home Home Assistant, Alexa
Supported LED protocols WS2811, WS2812B, WS2813, WS2815, SK6812, other compatible addressable LEDs, including fairy lights
IP rating IP65
Working temperature -20 ~ 45°C
Dimensions 109mm x 52mm x 36mm
Weight 132g
Certifications RoHS, CE
User Manuals

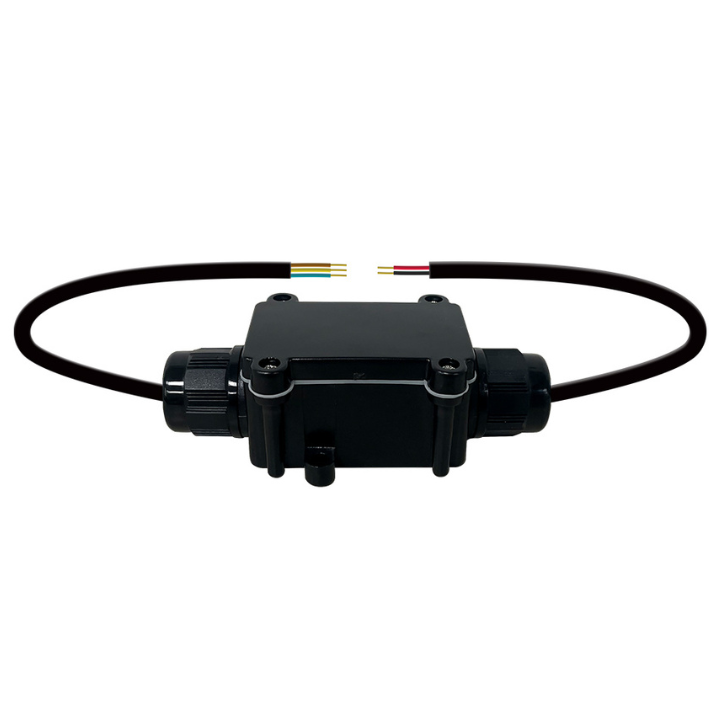

The GLEDOPTO GL-C-012WL is a single-channel WLED controller with one digital output for an addressable LED strip or pixel lighting run. Powered by an ESP32 and supplied with WLED pre-installed, it features an IP65-rated enclosure and Wi-Fi control through the WLED web interface or a compatible mobile app.

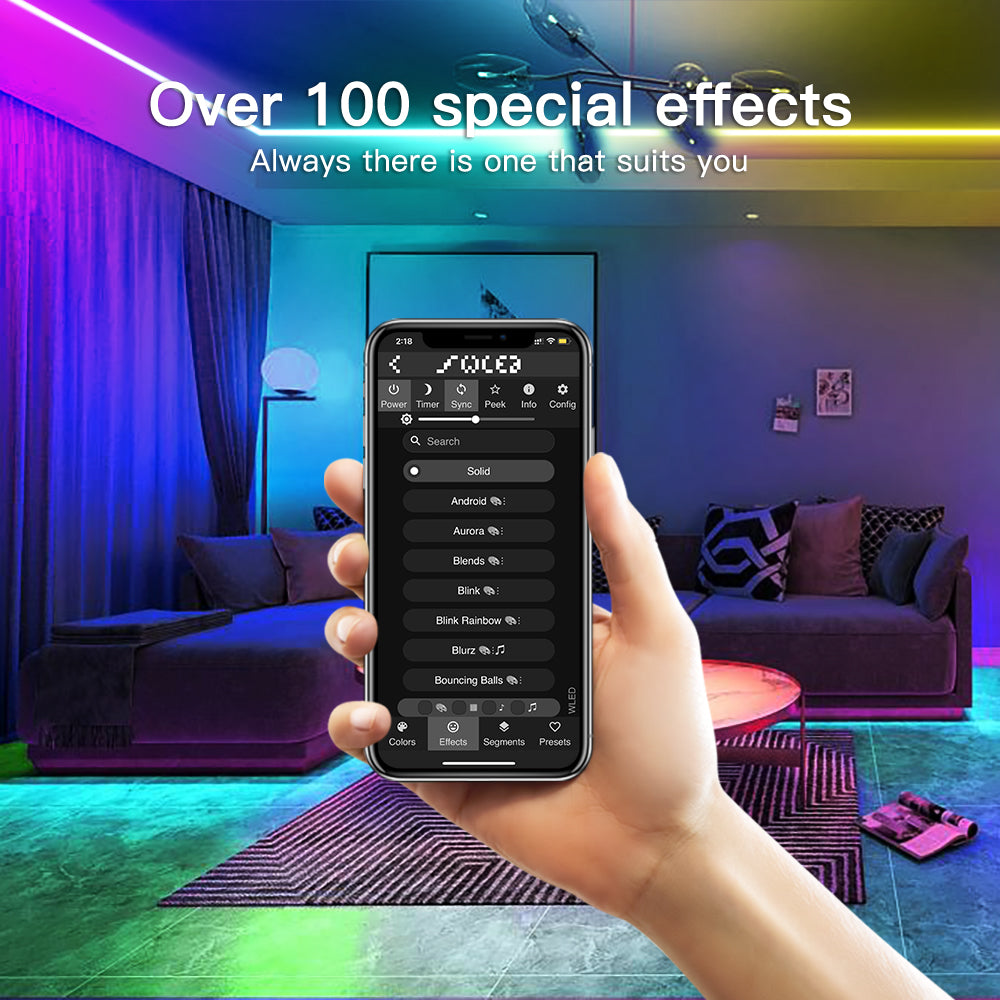

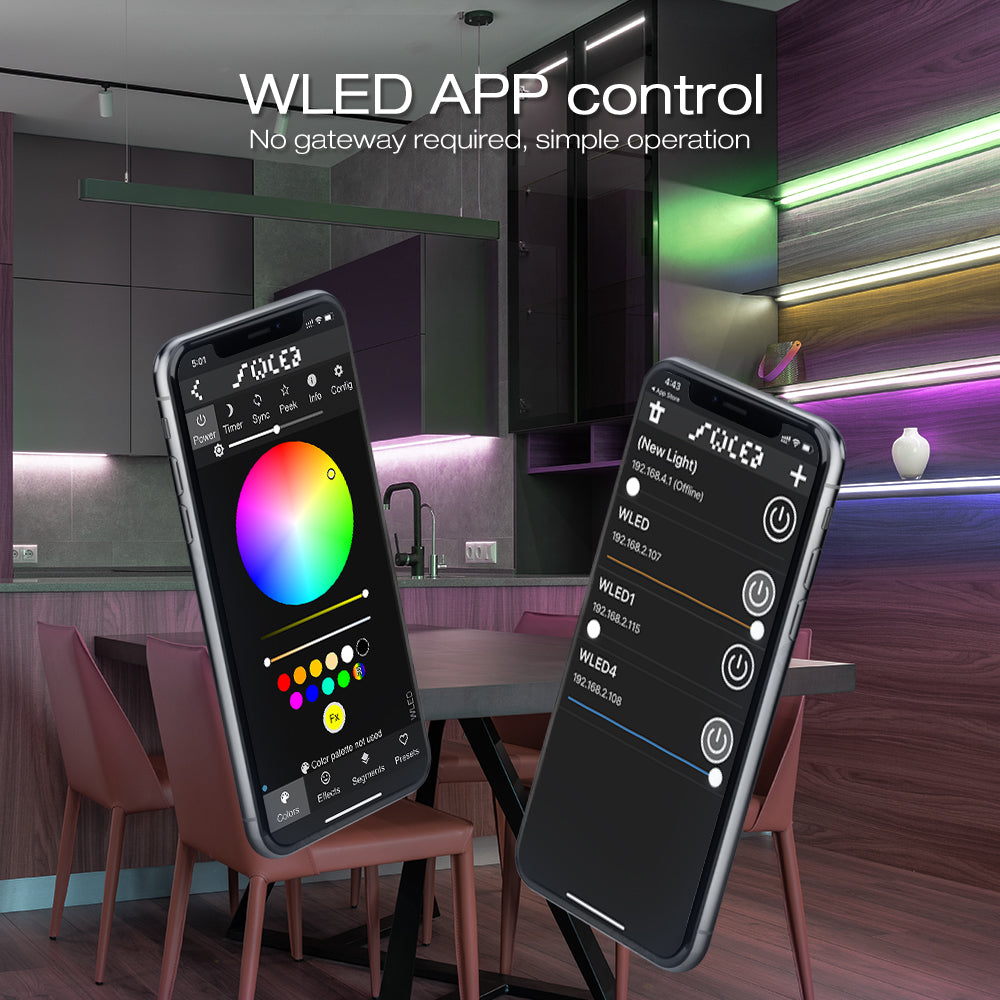

Use the WLED web interface or a compatible mobile app over Wi-Fi to adjust colours and brightness, apply effects and save presets. You can also divide one lighting run into WLED segments and give each section its own colour or effect.


Why Choose the GL-C-012WL?

  • ESP32-based controller with WLED pre-installed
  • One digital output for addressable LED strips and pixel lights
  • IP65-rated housing with sealed cable glands
  • Wi-Fi control through the WLED web interface or a compatible mobile app
  • Supports 5V, 12V and 24V DC LED installations
  • Up to 10A total output current

Compatible Addressable LED Chipsets

The GL-C-012WL supports common addressable LED chipsets used by WLED, including:

  • WS2811
  • WS2812B
  • WS2815
  • SK6812, including RGBW variants

Strip compatibility: Choose a digital addressable LED strip or pixel string. Standard analogue RGB, RGBW and other non-addressable strips require a compatible analogue controller.


Typical Applications

  • Garden and patio accent lighting
  • Decking and pergola lighting
  • Outdoor roofline lighting
  • Holiday and Christmas displays
  • Kitchen cabinet and ceiling cove lighting

Hardware Features

Single Digital Output

Connect one addressable LED strip or pixel run to the controller. Use WLED segments to control sections of that run separately, with different colours, brightness levels or effects.

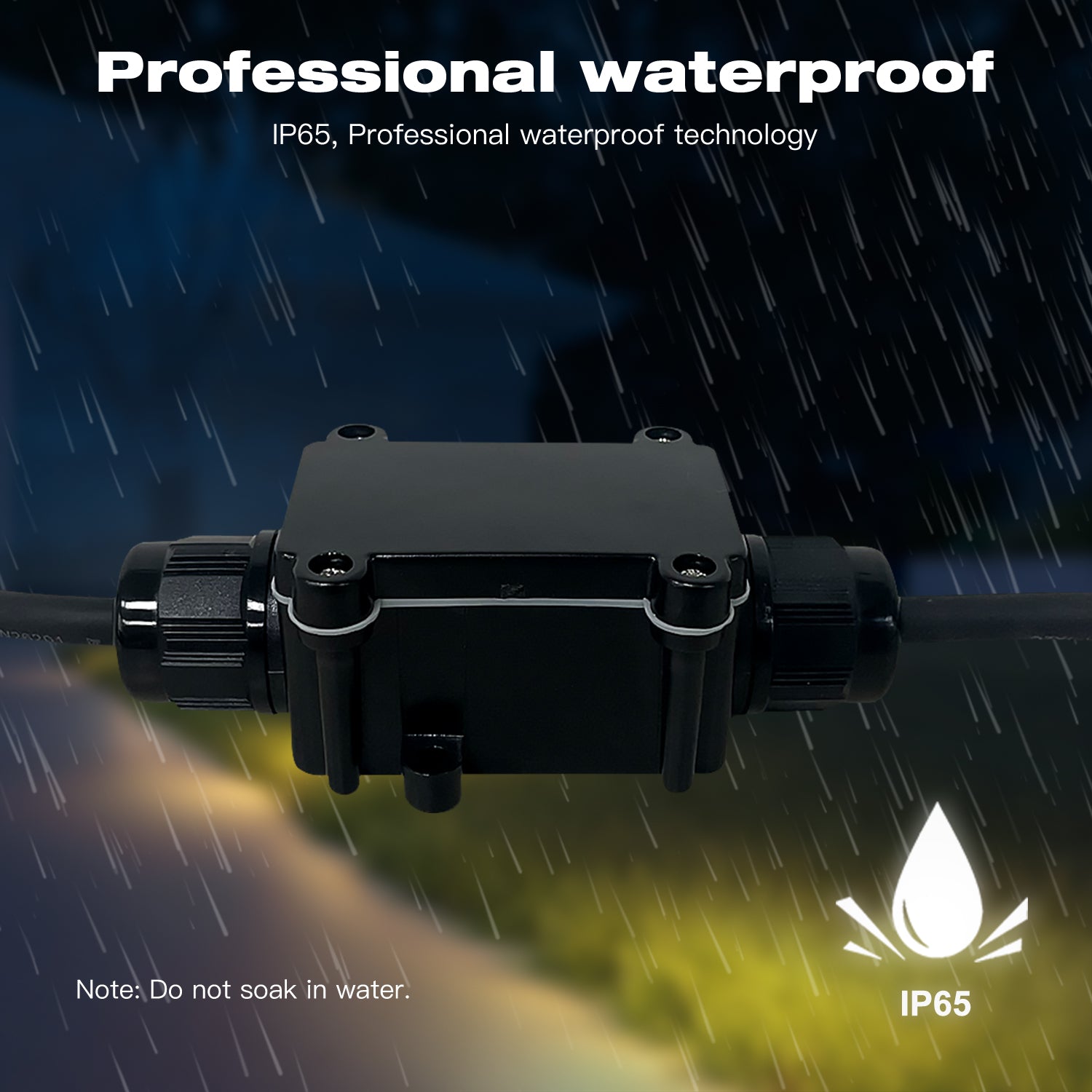

IP65-Rated Housing

The enclosure and sealed cable glands protect the controller against dust and water jets when properly assembled. Mount it above areas where water can collect, and use suitably rated strips, connectors and a power supply for outdoor installations.


Power Injection

The GL-C-012WL supports up to 10A through the controller. Longer LED runs may benefit from power injection even below that limit, especially if the far end looks dimmer or changes colour. Feed the injection points directly from a suitably rated power supply and size the wiring and fusing for the load.


Frequently Asked Questions

Does it come with WLED installed?
Yes. WLED is pre-installed and ready to configure for your LED strip.

Can I control it from my phone?
Yes. Connect the controller to Wi-Fi and use a compatible WLED app or open the WLED web interface in your phone’s browser.

Can I use WS2812B, WS2815 or SK6812 RGBW strips?
Yes. Select the appropriate LED type in WLED and use a power supply that matches your strip’s voltage. For example, WS2812B strips typically use 5V and WS2815 strips use 12V.

Can I control different parts of the same strip separately?
Yes. The controller has one physical output, and WLED segments let you set different colours or effects for sections of the connected strip.

Can I install the controller outdoors?
Yes. The IP65-rated enclosure is suitable for outdoor use when properly sealed. Install it where it will stay above standing water.

Does the controller change the supply voltage?
The strip receives the same voltage supplied to the controller. Use a 5V, 12V or 24V DC supply that matches your strip and can provide the current your installation needs.


What’s in the Box?

  • 1 × GLEDOPTO GL-C-012WL WLED controller
  • 1 × User manual

Ideal For

Choose the GL-C-012WL when you want to control one addressable LED lighting run over Wi-Fi and need an IP65-rated controller for a garden, patio or roofline installation.
